checkbox icons in data grid in standalone don't show up

[keram]

Hi,

I'm trying to set an icon into a checkbox in the Row template in a data grid. I select Icons & Boarder in the Property Inspector of the checkbox. Then when selecting This Stack in the Image Library no icons are visible (see the first image) even though I imported the images into the stack and they are visible and functioning OK on other cards and buttons. So I chose another Image Library where the icons are and chose one for icon and one for hiliteIcon state (see the second screen capture). Both these icons are visible in IDE and Windows standalone. But in Android standalone they are NOT visible.

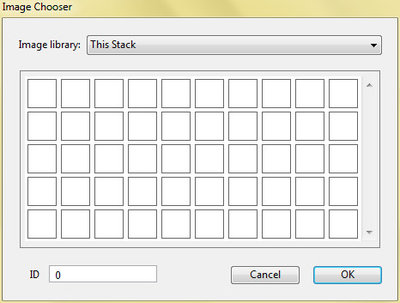

This Stack Library - empty!

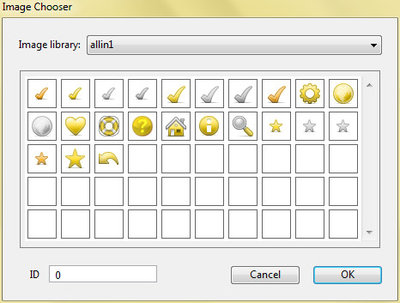

icons in another Icon Library

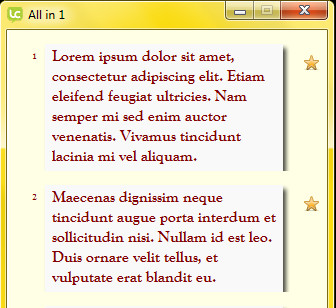

Icons visible in IDE and Windows standalone


Any idea why is this happening?
Is this a bug?
If not how to fix it?

keram

[keram]

SOLVED:

After many hours of trial and error I figured out that the icons have to be imported into the same substack that the Row Template is on in order to show up in This Stack Library and in the Android standalone.

keram
