Using Brush Tool

[gsillevis]

Hello!

I'm trying to add a brush tool to my stack. I can't figure out how to control what image it draws on. I want it to draw on image 'paper.png' but it keeps drawing on an image behind it. Does anyone know how to fix this?

Thank you!

[jmburnod]

Hi gsillevis ,
Is your image 'paper.png' referenced from an external file "'paper.png'" ?
Best regards
Jean-Marc

[gsillevis]

Yes, it is an imported control

[jmburnod]

Yes, it is an imported control

Yes but i think that is a referenced control (your image have a filename9
To draw on image you have to import your image not referenced (import as control)


[gsillevis]

It is not a referenced control, it is imported.

It is inside a group, though. When I moved it out of the group, it suddenly works better.

[gsillevis]

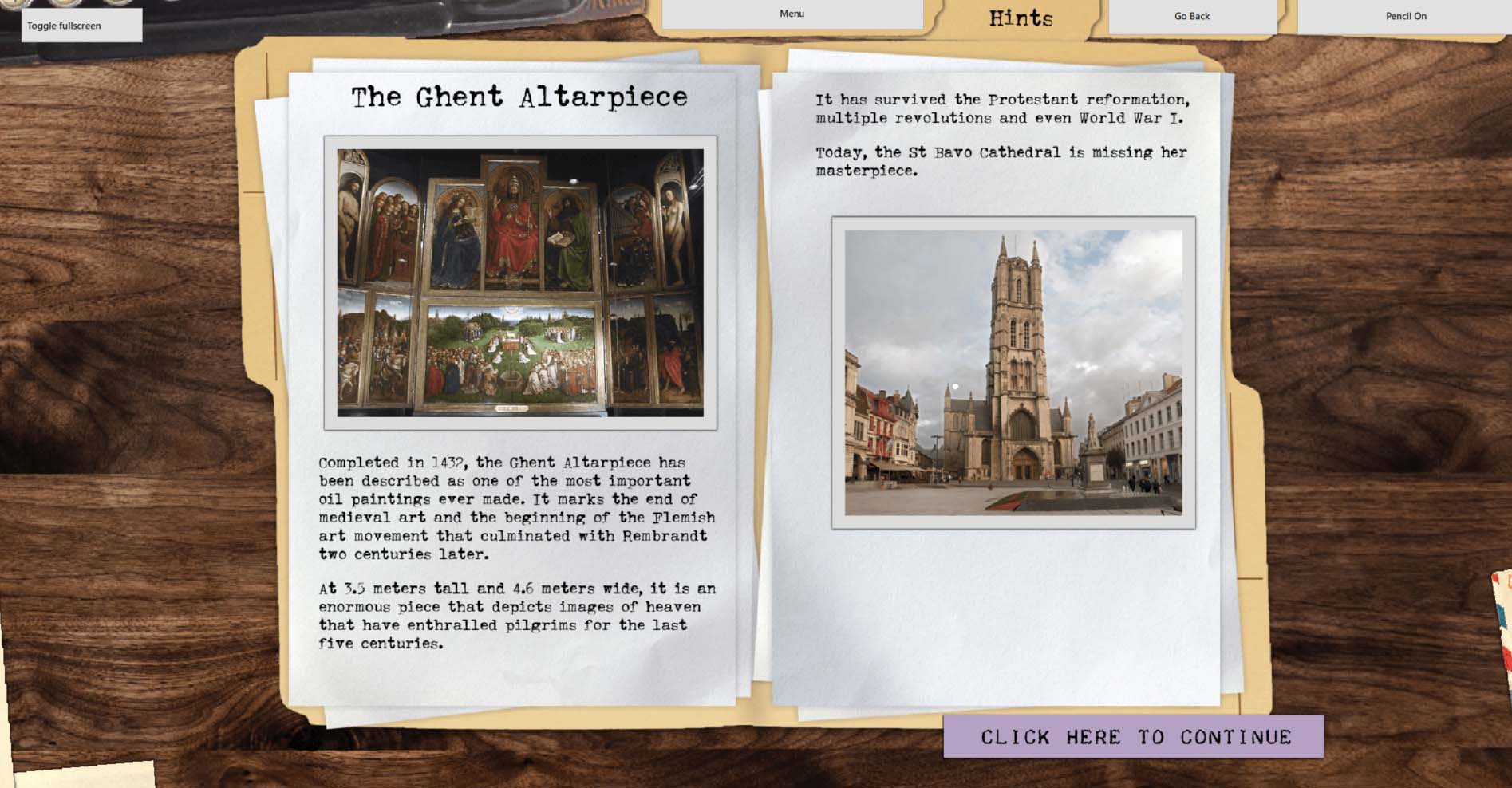

I'm making a game and I want players to be able to turn on a drawing layer (by clicking the Pencil On button at top right)

While I am able to get the new layers to appear (by turning on visible of a group called " Paper") the brush tool prefers to draw on the layers below it

[jmburnod]

Just an idea...
Is it possible in your context to export snapshot to a variable from rect of image paper.png and set the text of image paper.png to content of variable ?
Be careful, if your image paper.png has been resized, the rect of image paper.png keep rect of snapshot.

[gsillevis]

I ended up using this code:

Code: Select all

on mouseup


   if there is no image "Paper.png" then
      copy image "CleanPaper.png" of card "Menu Page" to this card
      set the name of image "CleanPaper.png" to "Paper.png"
      set layer of image "Paper.png" to top

   end if
   set blendlevel of image "Paper.png" to 50
   set visible of image "Paper.png" to true


   set visible of button "Clear image" to true
   set visible of button "Close pencil" to true

   set layer of group GUI to top






end mouseup

And it works great.

Unfortunately I only realised too late that the Brush tool doesn't work in HTML5 (which is what I'm building this for)...

But at least I learned some new things along the way!

[jmburnod]

I tested what i described above and it works.
Know the name of target image will be next step (mouseenter is not sent when brush tool s selected.
Fortunately, mousemove is sent and we can get the mouseloc on mousemove. Then a simple loop can return the name of target image if the mouseloc is within the rect of an image.

Code: Select all

on doSetTextImg pImg -- pImg = image name
   put the rect of img pImg into tRect
   export snapshot from rect tRect of this cd to tDataImg as PNG
   set the text of img seymaz to tDataImg
   delete last img -- image created when you paint
end doSetTextImg

Jean-Marc
