"I am trying to create an image that will appear to have the shape of some arbitrary polygon. The idea is to set the image's alphaData so that pixels within the polygon are opaque, and those outside the polygon are transparent. The scripts below create a rectangular image of whatever is under the polygon's enclosing rectangle, and then adjust the alphaData of that new image. But while the new image gets trimmed a bit, the result does not match the shape of the designated polygon. Any thoughts?
"David Epstein
"on action gID ## gID is the short id of the polygon
import snapshot from rectangle globalRect(the rect of control id gID)
put the short id of image (the number of images) into imID
set the width of image id imID to the width of grc id gID
set the height of image id imID to the height of grc id gID
set the loc of image id imID to the loc of grc id gID
set the polyCrop of image id imID to gID
end action
"function globalRect theRect
return globalLoc(item 1 to 2 of theRect),globalLoc(item 3 to 4 of theRect)
end globalRect
"setProp polyCrop polyID
-- crop target image's alphadata to show only points within grc id polyID
put the filled of grc id polyID into fillState
set the filled of grc id polyID to true
put the rect of the target into r
put numToChar(255) into P ## opaque
put numToChar(0) into T ## transparent
repeat with y = 1+item 2 of r to item 4 of r ## SEE NOTE*
repeat with x = 1+item 1 of r to item 3 of r
put x,y into myPoint
if within(grc id polyID,myPoint) then put P after hold else put T after hold
end repeat
end repeat
set the filled of grc id polyID to fillState
set the alphaData of the target to hold
end polyCrop
"* NOTE: the "1+" is these statements is my effort to step through the exact number of pixels in the width and height of the image. The number of values in the series (item 1 of the rect of the image) to (item 3 of the rect of the image), inclusive, is 1+ the width of the image. (But I am not really sure whether to add 1 to the first value or subtract 1 from the last value)."

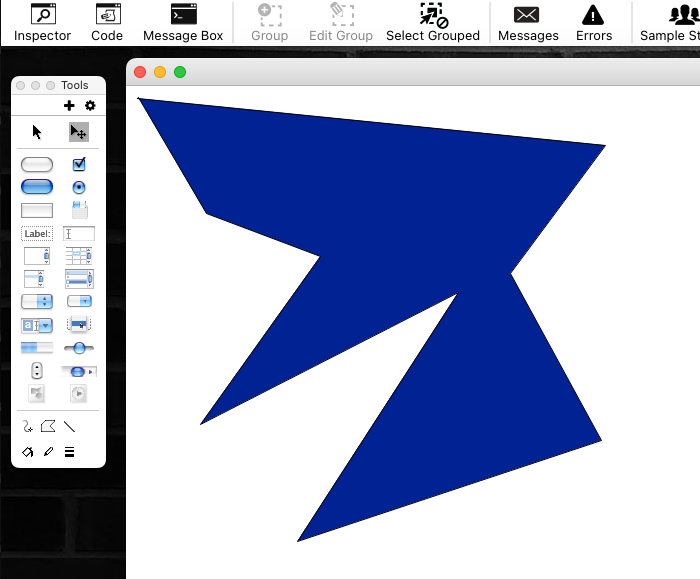

NOW, I, a well-known lazy slob, drew a polygone graphic with the built-in thingy-bob on the revTools palette:
-

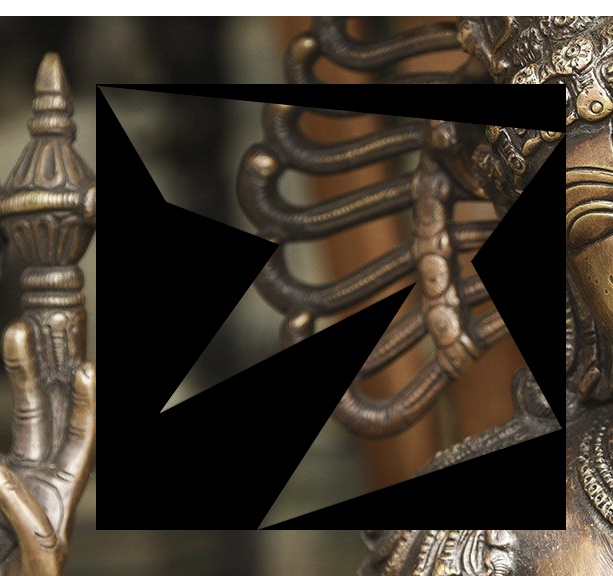

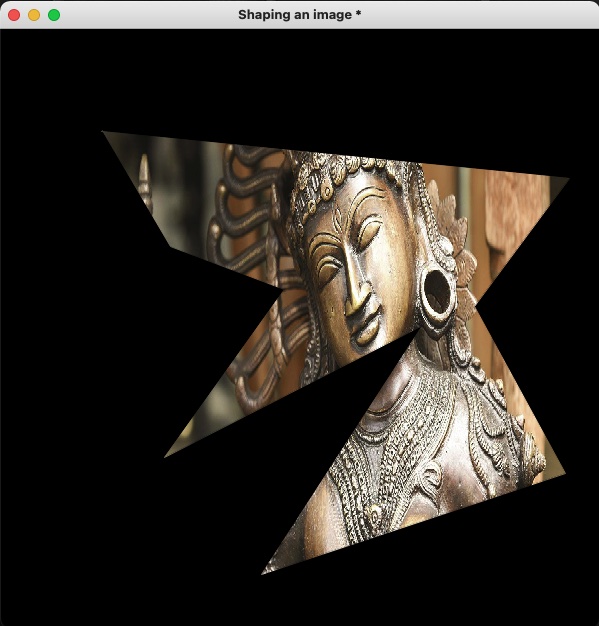

This, already, has all the area inwith the bounding rect but outwith the polygon as such transparent:
-
So, obviously;
1. I am misunderstanding the question.
