Tool Shed

[richmond62]

I have a button containing this code:

Code: Select all

on mouseEnter
   set the tool to "browse"
end mouseEnter

on mouseLeave
   set the tool to "brush"
end mouseLeave

So, when I move my mouse pointer to click on the button it should change the cursor
to the browse tool, and when I pull away from the button it should change the cursor
to the brush tool.

The script successfully turns the cursor to the brush tool, but seems unable to change it back to the browse tool.

[bogs]

Looks like a bug to me. Also looks like it goes all the way back to Mc 2.5 (the original, not the OSS version).

[jmburnod]

Hi,
Same result as Richmond here (LC 9.5.0,OSX 10.13)
Best
Jean-Marc

[richmond62]

I don't think it is a bug, but it is a problem.

I suspect that as soon as the brush tool is set a new empty image is created which overlays the control
containing the mouseLeave command.

Um . . . No . . . that only happens once one does a mouseDown with the brush tool.

In that case it is necessary to find the name of the new image and send it backwards so that it is on a lower layer to the button.

This is a problem because, ideally, the script to do this would be in the newly created image.

Putting this sort of thing into the cardScript does not work:

Code: Select all

on mouseUp
set the name of the last img to "ZZ"
end mouseUp

because the new image overlays the card and traps the mouseUp signal.

[richmond62]

Probably time to 'fess up . . .

I am trying to work up a very primitive drawing "thing" for my wife to use with Jitsi Meet, and myself with Zoom
(for our online teaching stuff) to allow us to draw pictures which our victims can see in real time.
-

-

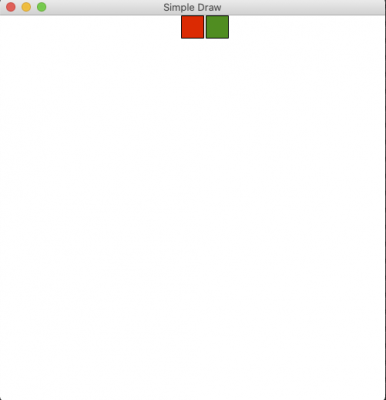

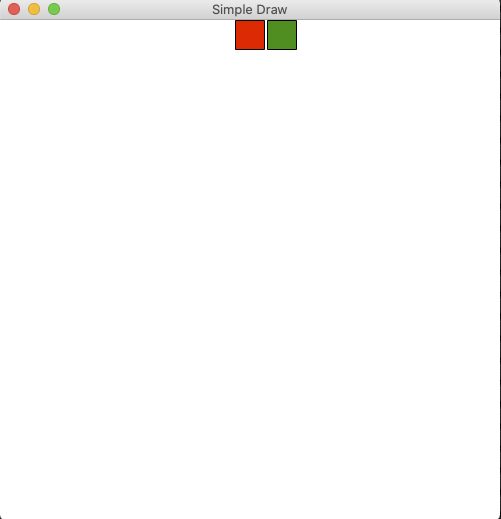

The central idea, such as it is, is that the end-user should be able to change the brushColor
by visiting one of the squares at the top of the window:

Code: Select all

on mouseEnter
   set the tool to "browse"
end mouseEnter

on mouseDown
   set the tool to "brush"
   set the brushColor to the backGroundColor of me
end mouseDown

[sphere]

I have a stack with similar comands as Richmond.
Don't have it with me at the moment

But i also want to change between the pointer and brushes or pencil.
Have to check tonight if i keep it in mind, see how it works, cause i stopped it then as it does not work well on Android(there is a old bugreport for it) as brushes seemed not to be copied over in the standalone.
I wanted to use it on very big touch screens which have android, but can also work with Windows/Mac using Tuio touch protocol

[dunbarx]

I have forever had a plug-in that allow me to use a right click on my mouse to switch between the browse and pointer tools. Very convenient.

A slight modification, and this works for me:

Code: Select all

switch
      case tKey = 65482 and the tool = "pointer tool" --RIGHT CLICK
         choose "brush tool"
         break
      case tKey = 65482 and the tool = "brush tool"  --RIGHT CLICK
         choose "pointer tool"
         break

But this does not translate to the mouseEnter and mouseLeave messages. So, a bug?

Craig

[dunbarx]

Maybe it is not a matter of the mouseEnter or mouseLeave messages.

ALL of the graphic and the paint tools will "lock out" the ability of either of the above messages. With a field somewhere:

Code: Select all

on mouseEnter
   set the tool to "browse"
   put random(99) into fld 1
end mouseEnter

on mouseLeave
   set the tool to "pencil tool"
   put random(99) into fld 1
end mouseLeave

You get a number in the field on mouseEnter, in the browse tool, but once mouseLeave fires the first time (you get another number), neither of those messages are ever sent again, and this seems to apply to all the paint and graphic tools.

Craig

[dunbarx]

Have not done a lot of testing, but the paint and graphic tools suppress most messages. Not RawKeyWhatever, but most others.The message watcher becomes very quiet when fooling around with those tools.

Is this normal behavior?

Craig

[richmond62]

the paint and graphic tools suppress most messages.

Is this normal behavior?

All the drawing tools would have to suppress some messages as drawing operations might be interfered with by mouseDown and
mouseUp messages, or, put another way:

maybe mouseDown, mouseStiilDown and so on are used in the operation of the paint tools.

This does not explain the mouseEnter and mouseLeave messages being ignored.

HOWEVER . . . if there were a way to rename the image created when a paint tool is used so that that image can be sent to
the bottom layer of a card so other controls (buttons and so on) could receive mouse signals that would not matter.

[bogs]

Why not reverse that, and layer the button up, since you already know all about the button.

[richmond62]

Why not reverse that, and layer the button up, since you already know all about the button.

Clever, clever.

How do you do that when, while you are using the brush tool you cannot send a mouse message anywhere to
layer the button up?

[dunbarx]

How do you do that when, while you are using the brush tool you cannot send a mouse message anywhere to
layer the button up?

Kluge, kluge, kluge.

Code: Select all

on mouseEnter
   set the tool to "browse"
end mouseEnter

on mouseLeave
   checkLoc
   set the tool to "pencil tool"
end mouseLeave

on checkLoc
   put the mouseLoc into fld 1
   send "checkLoc" to me in 1
end checkLoc

The tool changes, and the mouseLoc appears in fld 1. Now use that information to see if the mouseLoc is within the rect of the button, and act accordingly.

Craig

[richmond62]

The tool changes, and the mouseLoc appears in fld 1. Now use that information to see if the mouseLoc is within the rect of the button, and act accordingly.

Ah, but, I then drag my paint brush around for a bit, them mouseUp, and then move my pointer back over the button . . .

. . . by that time the checkloc has been and gone quite some time ago.

Fioch, off to have my supper . . . and then I'll start messing around again.

[jacque]

This has been standard behavior since MC 1.0. Try putting your tool buttons in a stack set to palette mode, I believe that handles the problem for you.

This won't work in mobile apps, it's desktop only.
