Hidden Objects

Got a LiveCode personal license? Are you a beginner, hobbyist or educator that's new to LiveCode? This forum is the place to go for help getting started. Welcome!

Moderators: FourthWorld, heatherlaine, Klaus, kevinmiller

Post Reply
RossG
Posts: 247
Joined: Thu Jan 08, 2015 7:38 am

Hidden Objects

Post by RossG » Thu May 28, 2020 8:27 pm

Is there a way/add-on that can show a list
of the hidden objects?

When there are a lot of them using the show
function isn't much help.
Is age an excuse? Eighty-four and counting.
Programming powered by coffee.

bogs
Posts: 5480
Joined: Sat Feb 25, 2017 10:45 pm

Re: Hidden Objects

Post by bogs » Thu May 28, 2020 8:46 pm

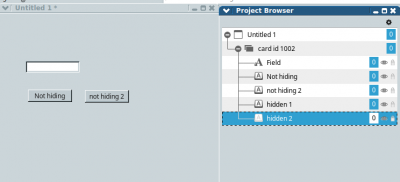

Um, well I'm sure this is too obvious, but the Project Browser shows all items all the time regardless of their state.
Seek and you shall find...

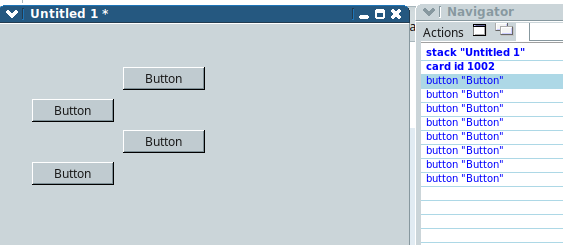

Navigator (Development-> Plugins) also shows all the controls regardless of state (and does a lot more than that, worth exploring).
Navigating a rocky path...

dunbarx
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 10305
Joined: Wed May 06, 2009 2:28 pm

Re: Hidden Objects

Post by dunbarx » Thu May 28, 2020 10:01 pm

Hi.

Bogs uses gadgets like the Project Browser and Navigator. You should, too.

If there are a LOT of them, even these can get ungainly. So why do you want such a list? I am not being flip; I can think of many reasons, but yours may allow us to think of the best way to store, display or modify it.

Craig

jacque
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 7389
Joined: Sat Apr 08, 2006 8:31 pm
Contact:

Re: Hidden Objects

Post by jacque » Fri May 29, 2020 8:16 pm

Another way is to use LC's View menu and select "Show invisible objects".
Jacqueline Landman Gay | jacque at hyperactivesw dot com
HyperActive Software | http://www.hyperactivesw.com

bogs
Posts: 5480
Joined: Sat Feb 25, 2017 10:45 pm

Re: Hidden Objects

Post by bogs » Fri May 29, 2020 9:13 pm

dunbarx wrote:
Thu May 28, 2020 10:01 pm
Bogs uses gadgets like the Project Browser and Navigator.
Bogs does no such thing hahaha. When I want to see any invisible controls, I run a repeat loop through the controls and set the visible property hahaha.

Mc doesn't have a project browser, not in the sense Lc does anyway.

dunbarx
VIP Livecode Opensource Backer
VIP Livecode Opensource Backer
Posts: 10305
Joined: Wed May 06, 2009 2:28 pm

Re: Hidden Objects

Post by dunbarx » Sat May 30, 2020 1:27 am

Well, for someone who does not use them, you sure talk about them a lot.

Craig

bogs
Posts: 5480
Joined: Sat Feb 25, 2017 10:45 pm

Re: Hidden Objects

Post by bogs » Sat May 30, 2020 10:50 am

That is true. I am certainly aware they are there (in Lc), and I don't expect someone asking a question about how to do 'x' to want to write repeat loops to do what is readily available in the IDE ;)

If the majority of people asking the question could be reasonably assumed to be using Rev 1.1 or 2.2, I'd have mentioned the 'Application overview' (nothing else was there at the time), Navigator didn't show up till 2.5 iirc. YMMV :twisted:

As for the PB itself, I think it was most useful between v.6.01 to 7.14, I consider the new one pretty awful in comparison, but I doubt that is news to anyone hah. Maybe the next revision of it will be better.

Lonnie
Posts: 29
Joined: Thu Apr 23, 2020 7:54 pm

Re: Hidden Objects

Post by Lonnie » Mon Jun 01, 2020 1:07 am

Hi RossG and the gang!
sorry to barge in but ...
I have a page full of listings in my Project Browser and can't figure out how to clear them out. None of them respond to clicking. I've shut down and rebooted. Most are various library files that my app must have called but sure like to clean it up. Seems to be related to all the messages I get when I try to Save As Stand Alone as well.
Lonnie

bogs
Posts: 5480
Joined: Sat Feb 25, 2017 10:45 pm

Re: Hidden Objects

Post by bogs » Mon Jun 01, 2020 1:11 pm

Without a screen shot to confirm it, it sounds like you are viewing LiveCode UI elements in lists. Go to the 'View' menu, and make sure 'LiveCode UI elements in lists' is unchecked.
