windowShape revisited
Posted: Sat Oct 22, 2022 10:12 am
by richmond62

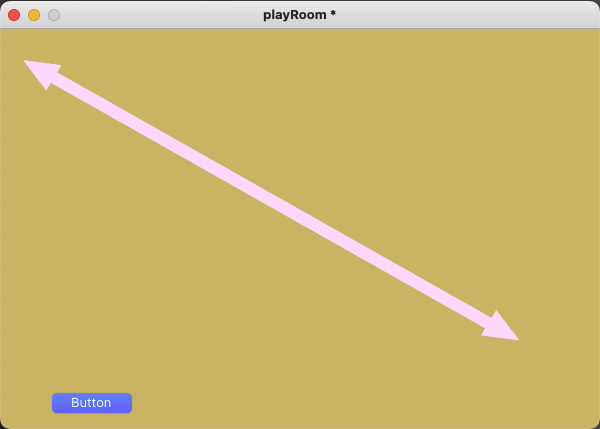

So, I have a stack with a graphic line on it:
-
-
and the button contains this code:
Code: Select all
on mouseUp
import snapshot from grc "myLine"
if exists(img "shadow") then
delete img "shadow"
end if
set the name of the last control to "shadow"
set the layer of img "shadow" to 1
set the loc of img "shadow" to the loc of grc "myLine"
set the windowShape of this stack to the ID of img "shadow"
end mouseUp
which is fairly pedestrian and, apparently, straightforward,
BUT the end result is this:
-
-
which it should not be; the alignment being, as we say in Scotland, "agley" or "aff".
Re: windowShape revisited
Posted: Sat Oct 22, 2022 4:38 pm
by richmond62
Code: Select all
on mouseUp
import snapshot from grc "myLine"
if exists(img "shadow") then
delete img "shadow"
end if
set the name of the last control to "shadow"
set the layer of img "shadow" to 1
set the loc of img "shadow" to the loc of grc "myLine"
--- additions
set the top of grc "myLine" to the top of card "c1"
set the left of grc "myLine" to the left of card "c1"
----
set the windowShape of this stack to the ID of img "shadow"
end mouseUp
Well, here we go again, I end up answering my own question as really cannot wait . . .
-
-
And that is NOT documented.
Re: windowShape revisited
Posted: Sat Oct 22, 2022 7:22 pm
by FourthWorld
"that"?
Re: windowShape revisited
Posted: Sat Oct 22, 2022 8:05 pm
by richmond62
THAT the topleft of the image that is used as the reference for the windowShape
must be 0,0; the topleft of the card of the stack.
Re: windowShape revisited
Posted: Sun Oct 23, 2022 10:43 am
by richmond62
ACTUALLY 'THAT' is what prevents one from developing some sort of 'squiggle board' in LiveCode
where an end-user can use the brushTool to draw on top of their desktop: because any masking would
shift their squiggles top-and-left in a disconcerting way UNLESS the whole thing was contained
inwith a FRAME.
Re: windowShape revisited
Posted: Sun Oct 23, 2022 11:07 am
by richmond62
-
Getting 'there' [wherever 'there' is
].
Re: windowShape revisited
Posted: Mon Oct 24, 2022 7:56 am
by richmond62
-
HOWEVER . . . with this script in the octagon:
Code: Select all
on mouseEnter
choose browse tool
end mouseEnter
on mouseLeave
choose brush tool
end mouseLeave
the
mouseLeave code works,
but
the
mouseEnter does NOT.

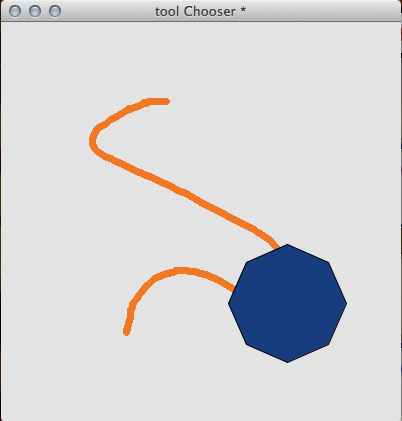

What should happen is something like this:
-
Re: windowShape revisited
Posted: Mon Oct 24, 2022 11:28 am
by richmond62
Presumably the reason for this is because choose brush tool sets up an image at a higher
layer than the object containing the mouseEnter code.
There seems no obvious way to circumvent this.
