Show Truncated list of values and NumProgressBar

[jmburnod]

Hi All,

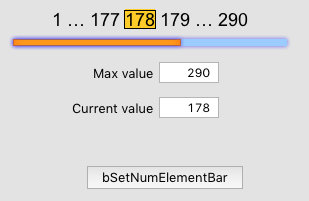

i needed one « stShowTruncNumProgress » (others name are welcome) to show progress trough a list of number with progressBar and one truncated list if needs.

I use a function getMyref(nbMax,CurNum)

put getMyref(2134,7) return "1…678…2134" and "7" looks textstyle "Box"
put getMyref(2134,2133) return "1 … 2132 2133 2134" and "2133" looks textstyle "Box"
put getMyref(2134,3)return « 1 2 3 4 … 2134 » and "3" looks textstyle "Box"

We can refresh progressbar and line of numbers with

1. clic on btn "bSetNumElementBar" or type return
2. clic on "…" or a number of numbers line
3. clic on progressbar (this works fine, except that it is not easy to select nbMax if nbMax > 200)

I feel that we can find simpler way to do the same

Here is the stack
Best regards
Jean-Marc

[MaxV]

I think that It's better to create 3 different labels, then work on item 2 of center field.

[jmburnod]

Hi Max,
Thanks for reply.
I thought the same but using only one fld seems easier. With three labels we have to manage width of each label.
Best regards
Jean-Marc

[MaxV]

Well,
then just use (item or word, it depends if you want to use commas to separate numbers)

Code: Select all

lock screen
set the textStyle of word 1 to -1 of field "myField" to "plain"
set the backgroundcolor of  word 1 to -1 of field "myField" to empty
set the textstyle of item 2 of field "myField" to "box"
set the backgroundcolor of  item 2 of field "myField" to orange
unlock screen

[jmburnod]

Sorry Max,
I was not clear.
Colorising is not a problem.
Did you try the stack ?
The stack contains a large script that i want simplify

[[-hh]]

Hi Jean-Marc,

this is a very nice idea.
You ask for options to shorten the script. Here is a function that may be an option for creating the same truncated text:

Code: Select all

-- x is the current Number, mx is the maximal number
function setNumElementBar x, mx
  if mx <= 10 then return word 1 to mx of "1 2 3 4 5 6 7 8 9 10"
  put max(1,x-1) into x0; put min(mx,x+1) into x1
  put x0 into m
  repeat with i=x0+1 to x1
    put space & i after m
  end repeat
  if x0 > 2 then put "1 ... " before m
  else if x0 > 1 then put "1 " before m
  if x1 < mx-1 then put " ... " & mx after m
  else if x1 < mx then put " " & mx after m
  return m
end setNumElementBar

To avoid the click problems with the graphic, TMHO a scrollbar would be more appropriate. With that you can increase the value by one also at the "ends" by clicking the bar.
To see what I mean, find attached your stack with a changed script of totally < 70 lines (which moreover uses "textChanged" for the "number-input-control").

Hermann

[jmburnod]

Hi Hermann,
Thank you
When i coded it I thougt that is a stuff for hh.
I'll leave early tomorow morning. I'll study it tomorrow evening
Jean-Marc

[jmburnod]

Guten morgen Hermann,
Thanks again, it works fine
I learn a lot each time you suggest something.
I need this for cards "Listes de pictos" and "Mes phrases" of EcrireEnPictos to make more visible the progress between pages

Code: Select all

scrollbar would be more appropriate

Yes. For "ordinary people" whose are able to maintains the mouse button to down and move and good capacity to point with finger for mobile version.
Best regards
Jean-Marc

[[-hh]]

Hi Jean-Marc.

I forgot that you are serving *all* platforms. May be at the end of this year even a HTML5 standalone is (easier) possible for your great (yes, great!) work?

For the current subject I like most your idea to have that field where all displayed numbers (first, prev, current, next, last) are clickable/touchable.
This approach alone is a main tool for going in row forth and back through a list of pictures.
I'll put this into my "object library".

What do you think of using "<<" and ">>" instead of "...", and a mouseDown on these in the field steps faster in direction of the first or last object? Say by stepping -4 down or 4 up respectively?

Hermann

[jmburnod]

Hi Hermann,

What do you think of using "<<" and ">>" instead of "...", and a mouseDown on these in the field steps faster in direction of the first or last object? Say by stepping -4 down or 4 up respectively?

A good suggest again
I'll do that.
It should be useful for others and I think to publish it to revOnline.
Do you have an idea how call this stuff ?
Jean-Marc

[[-hh]]

Perhaps "progress field" is a descriptive name?

[jmburnod]

Here is a stack "ProgressField001" with "<<" and ">>" for -4 +4. I add a mousedown to hilite the choosed word and mouserelease script to unhilite choosed word.
Jean-Marc

[[-hh]]

Hi Jean-Marc.

I like it and it really should be better visible (livecodeshare/revOnline).

One more proposal:
You hard-code the "4". It could also be a local variable tStep or somehow derived from the maximal number (fld "fNumElement") or editable in an additional field?

For example
    put max(3, fld "fNumElement" div 32) into tStep
    put max(3, fld "tStepElement") into tStep

Hermann

[jmburnod]

Hi Hermann,

You hard-code the "4". It could also be a local variable tStep or somehow derived from the maximal number (fld "fNumElement") or editable in an additional field?

Here is a stack "FieldProgress002" with an editable field "fStep". It seems that is the best way to let the control to the user
Jean-Marc

[jameshale]

missing from the max value field...

Code: Select all

on closeField
   set the endvalue of scrollbar "sbCurElement" to me
end closeField

else setting the value here to more than 100 is not reflected in the values of the scroller.

Of course this could be moved to the card script somewhere.
