Greetings All,

Per the LC Dictionary, the hoverIcon property "Specifies an image to display in a button when the mouse pointer enters the button."

Attached is a very simple stack: One button, two images, and no scripts.

When the mouse enters the button, the hoverIcon image is not displayed [Win 10, LC9.6.9].

What am I missing?

Rob

Hi Rob,

doesn't work on my Mac, too!?
However a quick test with a new stack and some of the built-in icons DOES in fact work!?
Too funky...

Best

Klaus

Whether my pointer is IN or OUT of the target I ALWAYS get this:
- -
This helps me understand what you are expecting:
- -
"The hoverIcon is displayed when the mouse pointer is over the button, but the button is not hilited."

Um, I wonder if, for some reason best known unto someone, somewhere, if as soon as we mouseOver a
button it becomes hilited?

OK, OK, I was talking crap [wouldn't be the first time!]:
- -
Just possibly, you're having a problem with GIF images!
- -

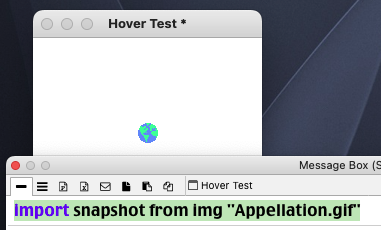

So, I'm going to play 'silly buggers' like this:
-

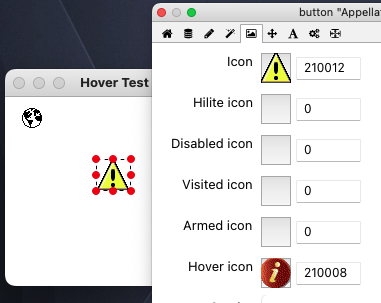

Now, let's see what a tweak or 2 does:
- -
Nothing whatsoever.

This does NOT work even for built-in icons"
-

This has NOT been working for quite some time:
- -
As LC is chock full of bugs and 'work around' is now a bone stuck in almost every developer's throat, wouldn't
it be a good idea to STOP development of everything and KILL all those bugs completely?

RCozens wrote: ↑

Wed Apr 26, 2023 5:59 pm

When the mouse enters the button, the hoverIcon image is not displayed [Win 10, LC9.6.9].

What am I missing?

So the autoArm property of that button has been set to true - which is why there is no hoverIcon displaying.

Can you remember how you created it? Or indeed how that property got set?

[ FWIW, the autoArm property enables very specific and quite subtle behavior which is used for the buttons the engine creates to implement menus on Windows and Linux ]

Well, I don't know about the OP, but I am most definitely missing something as I cannot for the
life of me work out where I would find the autoArm prop. in the props palette.

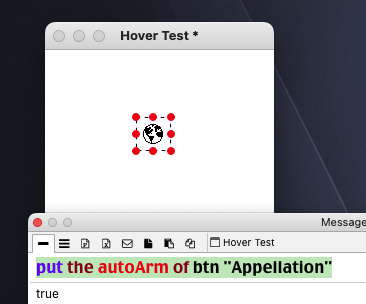

Although what you state is, inevitably, correct:
- -
and I did learn that autoArm is set to false by default:
- -

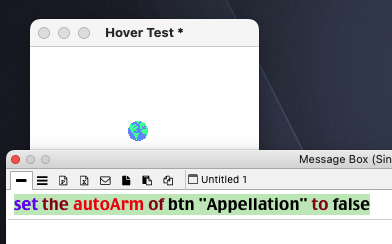

and that the OP's problem can be sorted out very quickly:
- -

Can you remember how you created it? Or indeed how that property got set?

That is extremely queer.

richmond62 wrote: ↑

Wed Apr 26, 2023 7:43 pm

Well, I don't know about the OP, but I am most definitely missing something as I cannot for the
life of me work out where I would find the autoArm prop. in the props palette.

Indeed - that's why I'm curious as to how a button ended up with it being set to true.

The property has never been exposed as a property in the property inspector because it causes buttons to have very specific and subtle behavior - tuned for the purposes of the engine using it to build the menus you see on Linux and Windows (and on macOS too - when you have the native theme turned off).

I'm sure there are a few who have employed its rather arcane properties to good use outwith that - however, for most of us, it is something best left well alone

Hm, in my above metioned test I created a stack, dragged a button from the tools palette,
set the two icons for icon and hovericon and it worked right out of the box.

I did not set any properties for the button!?

I did not set any properties for the button!?

Read the previous postings.

Ah, sorry, missed Mark's first answer...

LCMark wrote: ↑

Wed Apr 26, 2023 7:32 pm

So the autoArm property of that button has been set to true - which is why there is no hoverIcon displaying.

You're the man, Mark!

The button was copied from a HyperCard stack that was converted to LC (actually RunRev at the time) many years ago. Then when I researched this problem I confused the autoArm property with the autoHilite property which I had already found not to help.

I will be eternally grateful for your finding my error. I had just changed all the buttons in my app to use the hoverIcon instead of the armedIcon based on guidance from the LC Dictionary. Now I won't have to change them back....just reset that property.

Many thanks,...and thanks to all who responded.

Rob

RCozens wrote: ↑

Thu Apr 27, 2023 1:03 am

I had just changed all the buttons in my app to use the hoverIcon instead of the armedIcon based on guidance from the LC Dictionary. Now I won't have to change them back....just reset that property.

Woe is me!

This worked fine in the example stack I uploaded; but after resetting the autoArm property of all my buttons they still won't display the hoverIcon on mouseEnter. Is it possible that there is something else about my stack's HyperCard heritage that is blocking this? I just looked at the lists of stack & button properties, but nothing jumps out as the possible culprit.

Rob

A little further info:

Now that the buttons' autoArm property is false, the hoverIcons are being displayed on mouseUp.

??
