Mapping handler dependencies

[SWEdeAndy]

Of course this is way more general than what I suggested.

Yes, I extended the scope to include all types of handlers, as that was no more work than including just some of them. It felt more complete that way.

Thanks, especially as version 1.2.0 (which I had missed till now) was released on my birthday…!

Yes, that was of course intentional - congratulations!

And now I've released v1.2.1 where the PNG and SVG creation works again:
https://github.com/wheninspace/WIS_Scri ... ses/latest

[bn]

Hi Andreas,

In my short testing it worked flawlessly, I am always amazed at what you do in "Mapping Handler Dependencies"

Thank you
Bernd

[SWEdeAndy]

Thanks Bernd!

On the use-list I got quick feedback that large flowcharts give a syntax error.
In the flowchart settings (the cogwheel next to the Create flowchart button), change the Mermaid version to 10.5.1.
That fixes it.

I have now made that the default version again, and replaced the downloadable stack without creating a new release. If you do the above fix manually, you don't need to re-download.

Apparently the newest Mermaid version (11.4.0) still has an issue with massive flowcharts. I had not sufficiently tested that before making it default.

[bn]

change the Mermaid version to 10.5.1.

I did that and it worked.
Kind regards
Bernd

[Fjord]

Hi, Andreas!
I've found somethig strange to me: I've got several stacks, that define commands and functions (duh!). When I check the "Group per handler host" checkbox:
1. the commands are correctly assigned to their stack, be they private or not;
2. the functions…
2.1. … are correctly assigned to their stack if they're private
2.2. but they seem to float freely out of the stack boxes when they're not private

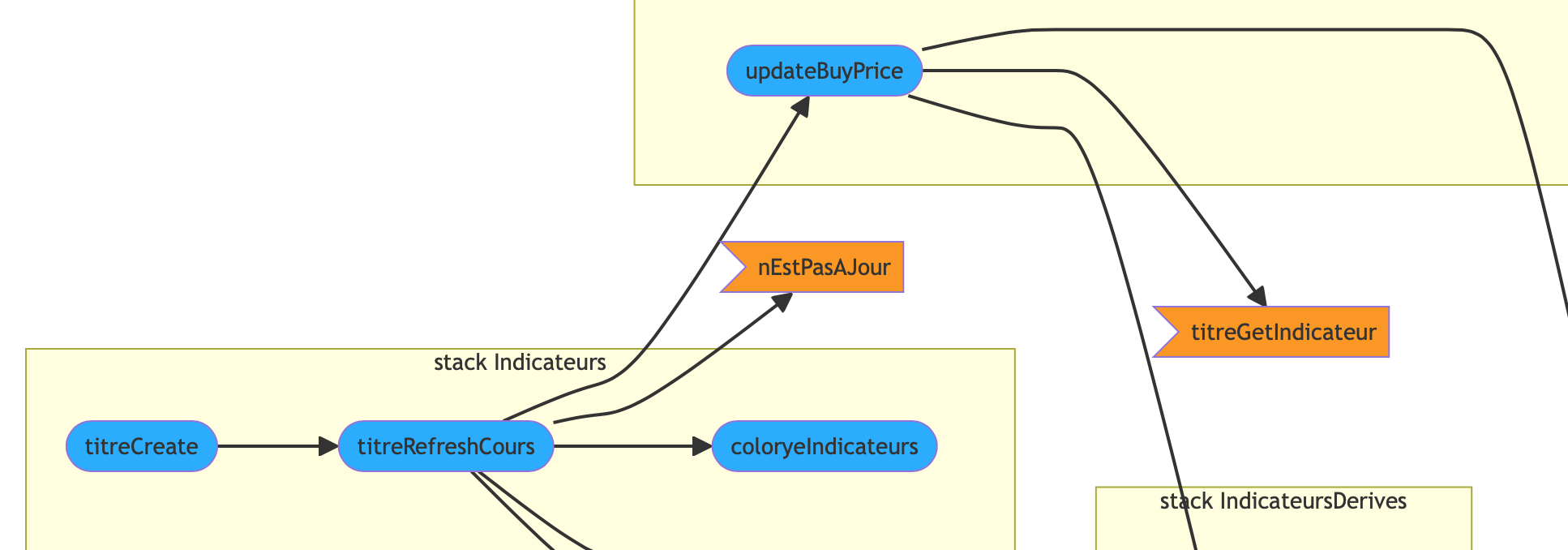

See function nEstPasAJour in the first 2 images below.
Now, is that a bug or is it a feature ?

[SWEdeAndy]

Now, is that a bug or is it a feature ?

You have found a bug! Thank you!

From v1.2.0 I changed the shape of the function box, and I had missed to update some regex accordingly, which affects how handlers are sorted into host containers.

I have updated the code and will soon release the fixed version.

[SWEdeAndy]

Latest release:

1.2.2 (11 Dec 2024)
- Fixed bug: Function boxes were not correctly included in host containers, when using the ”Group per handler host” feature
- Enhancement: The maxEdges value is now set to 5000, making it possible to draw enormous flowcharts also with Mermaid v11.4+. Note though, that the PNG/SVG production, which uses the kroki.io service, is still limited to the standard 500 edges (due to kroki.io limitations).

https://github.com/wheninspace/WIS_Scri ... ses/latest
